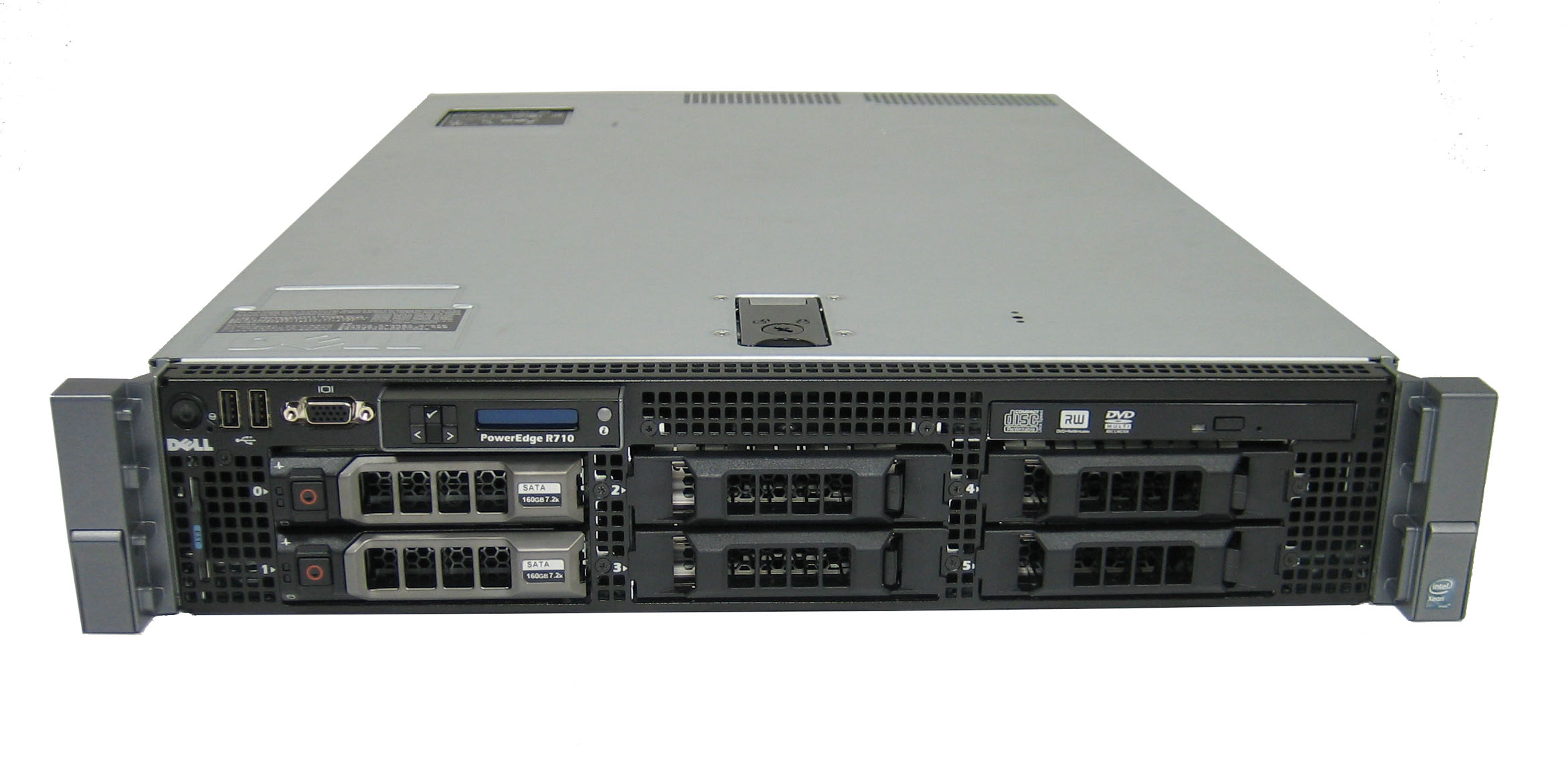

Server Dell PowerEdge R710 CPU 2x L5520
|
CPU: 2x 4 Core L5520 (2.26Ghz, 8M Cache L3)
RAM: 32GB DDR3-10600R/1333MHz ECC
HDD: Option HDD SAS/SATA 2.5"
DVD: Option (Chưa kèm)
RAID: Dell Perc 6i Raid (0,1,5,10)
NIC: Broadcom Quad-port Ethernet
Power Supply: 2x PS Hot-Plug
Rail kit: Option (Chưa kèm)
Hàng nhập khẩu trực tiếp từ Mỹ.
|
|
Processors Server
|
Intel® Xeon® processor 5500/5600
Six-Core Intel® Xeon®
Quad-Core Intel® Xeon®
|
|
Chipset
|
Intel® 5500 chipset
|
|
Memory Server (Bộ nhớ trong Máy Chủ) Dell R710
|
Up to 288GB2 (18 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 800MHz, 1066MHz or 1333MHz
|
|
Operating Systems Server Dell R710
|
Microsoft® Windows® Small Business Server® 2011
Microsoft® Windows® Small Business Server 2008
Microsoft® Windows® Essential Business Server 2008
Microsoft® Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™)
Microsoft® Windows Server® 2008 R2 SP1, x64 (includes Hyper-V™ v2)2
Windows® HPC Server 2008 R2
Novell® SUSE® Linux® Enterprise Server
Red Hat® Enterprise Linux®
Oracle® Solaris™
Virtualisation Options:
Citrix® XenServer™
VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)
|
|
Storage Server (Bộ lưu trữ Máy Chủ) Dell R710
|
8 x 2.5” Hard Drive Option or 6 x 3.5” Hard Drive Option; Optional flex bay expansion to support half-height TBU
Up to six 3.5” drives without optional flex bay OR
Up to eight 2.5” SAS or SATA drives with optional flex bay
|
|
Maximum Internal Storage:
|
18TBs SATA
|
|
Slots
|
4 PCIe G2 slots + 1 storage slot:
Two x8 slots
Two x4 slots
One x4 Storage slot
|
|
RAID Controllers Server Dell R710 (optional) Internal:
|
Internal:
PERC H200 (6Gb/s)
PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
SAS 6/iR
PERC 6/i with 256MB battery-backed cache
External:
PERC H800 (6Gb/s) with 512MB Non-Volatile cache
PERC H800 (6Gb/s) with 512MB of battery-backed cache
PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA
|
|
Optional Communications
|
Optional add-in NICs:
Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
Intel PRO/1000 PT Dual Port Server Adapter, Gigabit, Copper, PCI-E x4
Intel PRO/1000 VT Quad Port Server Adapter, Gigabit, Copper, PCI-E x4
Intel 10GBase-T Copper Single Port NIC, PCI-E x8
Intel Single Port Server Adapter, 10Gigabit, SR Optical, PCI-E x8
Broadcom® BMC57710 10Base-T Cooper Single Port NIC, PCI-E x8
Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE and iSCSI Offload, PCI-E x4
Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE, PCI-E x4
Broadcom® NetXtreme® II 57711 Dual Port Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and iSCSI Offload
Intel® Gigabit ET Dual Port Server Adapter
Intel® Gigabit ET Quad Port Server Adapter
Broadcom 10GbE NIC, Broadcom Dual Port 10GbE SFP+
Brocade® CNA Dual-port adapter
Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
Emulex® CNA iSCSI HBA stand up adapter OCE10102-FX-D
Brocade® CNA (1020) Dual Port Server Adapter
Optional add in HBAs:
Qlogic® QLE 2462 FC4 Dual Port 4 Gbps Fiber Channel HBA
Qlogic® QLE 220 FC4 Single Port 4 Gbps Fiber Channel HBA
Qlogic® QLE 2460 FC4 Single Port 4 Gbps Fiber Channel HBA
Qlogic® QLE2562 FC8 Dual-channel HBA, PCI-E Gen 2 x4
Qlogic® QLE2560 FC8 Single-channel HBA, PCI-E Gen 2 x4
Emulex® LPe-1150 FC4 Single Port 4 Gbps Fiber Channel HBA, PCI-E x4
Emulex® LPe-11002 FC4 Dual Port 4 Gbps Fiber Channel HBA, PCI-E x4
Emulex® LPe-12000, FC8 Single Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
Emulex® LPe-12002, FC8 Dual Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
Brocade® FC4 and 8 GB HBAs
Emulex® OCE10102-IX-DCNA iSCSI HBA stand-up adapter
|
|
Power Server (Bộ nguồn Máy Chủ) Dell R710 EL5520
|
Two hot plug high efficient 570w PSU OR high output two hot-plug 870W PSUs
|
|
Management
|
Dell™ OpenManage™
Lifecycle Controller
iDRAC6 Enterprise (Optional)
vFlash (Optional)
Microsoft® System Center Essential (SCE) 2010 v2
|
