SERVER MÁY CHỦ DELL POWEREDGE M610 CPU 2xE5520 BLADE SERVER CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES SERVER MÁY CHỦ DELL POWEREDGE M610 CPU 2xE5520 BLADE SERVER

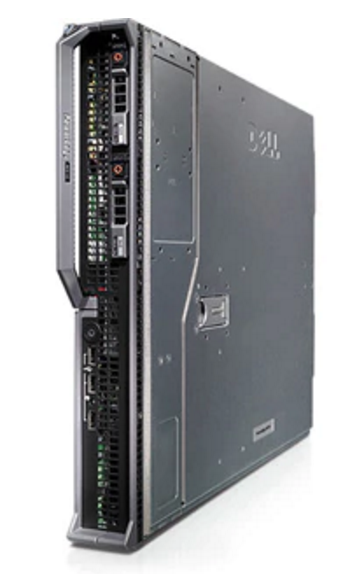

Dell Blade PowerEdge M610 - CPU 2x L5520 (2x 4 Core 2.26Ghz, 8M Cache)/ Ram 32GB DDR3/ HDD 0xGB SAS 2,5".

Processor

Intel® Xeon® 5500 series Dual and Quad Core 60W, 80W, and 95W TDP options

Operating System

    Microsoft® SQL Server 2008 R2
    Microsoft® Windows® Essential Business Server 2008
    Microsoft Windows® Server 2008 SP2, x86/x64 (x64 includes Hyper-V™ )
    Microsoft Windows® Server 2008 R2, x64 (includes Hyper-V™ v2)2
    Microsoft® Windows® HPC Server 2008
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    Sun® Solaris™

Chipset

Intel 5520

Memory

    12 DIMM slots
    1GB/2GB/4GB/8GB ECC DDR3
    Support up to 192GB3 using 12 x 16GB DIMMs

Embedded Hypervisor (Optional)

    Citrix® XenServer®
    Microsoft® Windows Server® 2008, with Hyper-V™
    VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)

Storage

Internal Hot-Swappable Drives:

    2.5" SAS (10K rpm): 36GB, 73GB , 146GB , 300GB , 600GB
    2.5" SAS (15K rpm): 36GB, 73GB or 146GB
    2.5” SATA (7.2k rpm): 80GB, 120GB, 160GB or 250GB
    Solid State Drives (SSD): 25GB, 50GB, 100GB, 150GB

Maximum Internal Storage

Up to 600GB per blade via two x 2.5" 300GB4 hot-plug SAS hard drive

External Storage:

    Dell/EqualLogic PS5000 Series
    PowerVault™ NX1950 Unified Storage Solution
    PowerVault MD3000i

Dell/EMC products:

Dell/EMC fibre channel and/or iSCSI external storage, including Dell/EMC CX300, CX3-10c , CX3-20, CX3-40, and CX3-80; CX4-120, CX4-240, CX4-480 and CX4-960

Drive Bays

Two 2.5” SAS/Solid State Hot-Swappable Drives

2.5" 500GB4 SATA

3.5" 2.0TB4 SATA

I/O Mezzaine Card Options

Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.

Available options:

1Gb & 10Gb Ethernet:

    Dual-Port Broadcom Gb Ethernet w/ TOE (BCM-5709S)
    Quad-Port Intel Gb Ethernet (82576)
    Quad-Port Broadcom Gb Ethernet (BCM-5709S)
    Dual-Port Broadcom 10Gb Ethernet (BCM-57711)

10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB):

Dual-Port Qlogic® Converged Network Adapter (QME8142) - Supports CEE/DCB 10GbE + FCoE

Fibre Channel:

Dual-Port QLogic FC8 Fibre Channel Host Bus Adapter (HBA) (QME2572)
Dual-Port Emulex FC8 Fibre Channel Host Bus Adapter (HBA) (LPe1205-M)

Infiniband:

Dual-Port Mellanox ConnectX Quad Data Rate (QDR) InfiniBand
Dual-Port Mellanox ConnectX Dual Data Rate (DDR) InfiniBand

RAID Controllers

Internal:

    PERC H200 Modular (6Gb/s)
    PERC H700 Modular (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
    SAS 6/iR Modular
    CERC 6/i Modular
    PERC 6/i Modular with 256MB battery-backed cache

Communications

Two embedded Broadcom® NetXtreme II™ 5709 Gigabit Ethernet NICs with failover and load balancing TOE (TCPIP Offload Engine) supported on Microsoft® Windows Server 2003, SP1 or higher with Scalable Networking Pack. iSCSI Offload supported on Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP1 or higher, Red Hat® Linux® Enterprise 5, and SUSE LINUX Enterprise Server 10. Scalable Networking Pack for Microsoft Windows Server 2003 is not required.

Boot from SAN (iSCSI and FC) supported

Optional add-in NICs:

    Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
    See I/O Mezzanine Card Options
    Intel® Gigabit ET Dual Port Server Adapter
    Intel® Gigabit ET Quad Port Server Adapter

Optional add in HBAs:

See I/O Mezzanine Card Options

Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.

Power

Supplied by Dell’s M1000e Blade Chassis

Video Card

Matrox G200

Chassis

The PowerEdge M610 blade server fits in the M1000e blade enclosure. A total of 8 full-height or 16 half-height blades can fit into every M1000e enclosure. Full height and half height blades can be mixed in M1000e enclosures with no limitations.

M610 Dimensions and Weight (blade only):

Height: 18.9 cm (7.4 in)

Width: 5 cm (2 in)

Depth: 48.6 cm (19.2 in)

    Weight (Maximum Configuration): 5.2-6.4 kg (11.5-14.0 lb)

    Full height blade fits inside the M1000e Blade Enclosure

    Maximum of 8 per blade chassis

Management

Dell OpenManage featuring Dell Management Console

Lifecycle Controller

iDRAC6 Enterprise

VFlash

Regulatory
Regulatory Model: HHB

Regulatory Type: HHB001

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
