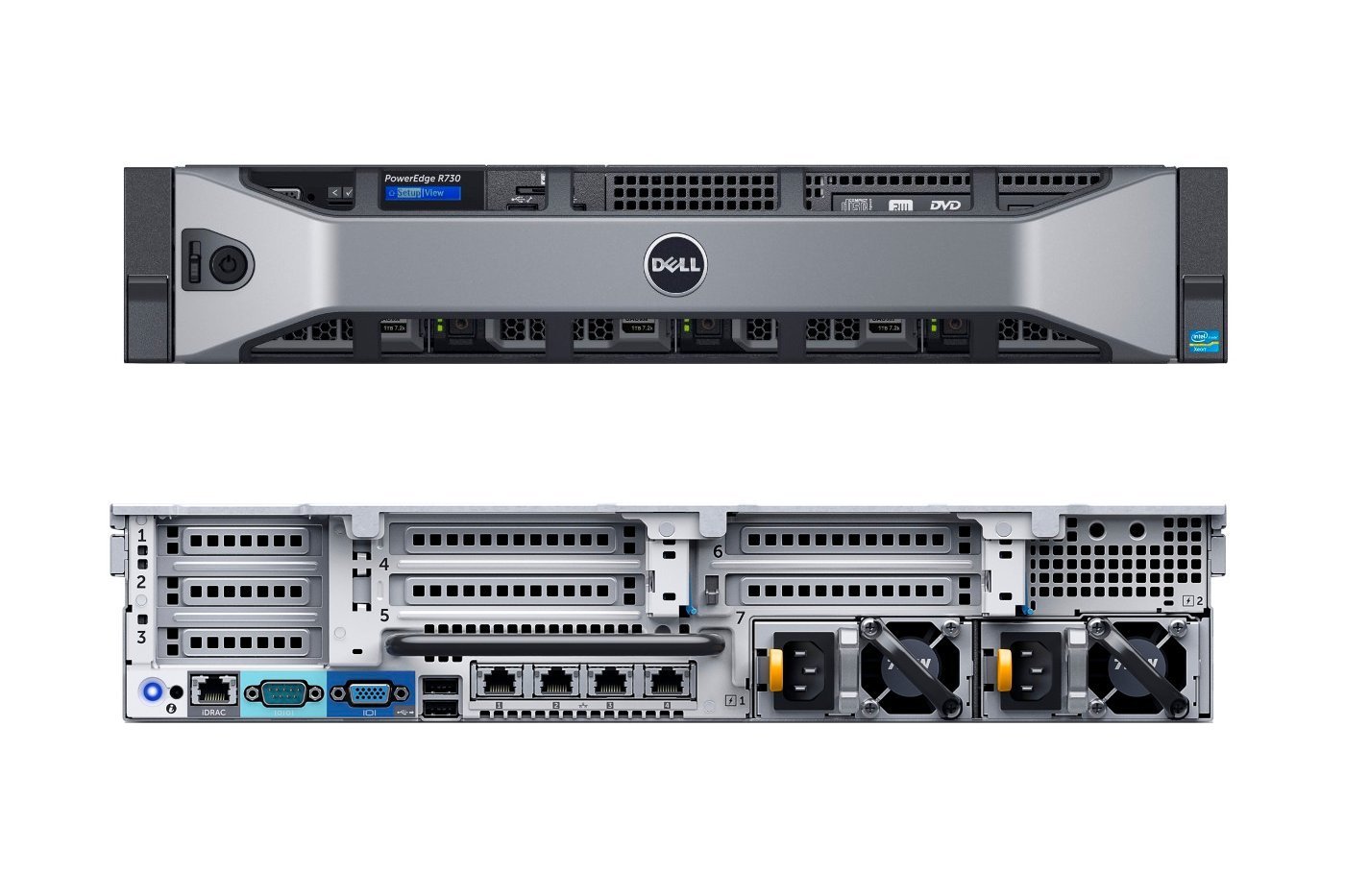

SERVER DELL POWEREDGE R730XD 3.5 E5-2660 v3
RACK:
2U
CPU:
Intel® Xeon® E5
RAM:
8GB - 32GB
Số lượng:
Giá bán: 0 VND
MÁY CHỦ SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3 CHÍNH HÃNG, GIÁ RẺ tại THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R730XD 3.5" E5-2660 V3
- (1) Intel® Xeon® E5-2660 v3 2.6GHz,25M Cache,9.60GT/s QPI,Turbo,HT,10C/20T (105W) Max Mem 2133MHz
- 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
- Hard Drive : None 3.5-inch
- RAID PERC H730 Adapter RAID Controller, 1Gb NV Cache ( RAID 0,1,5,6,10,50,60 )
- Broadcom 5720 QP 1Gb Network Daughter Card
- 12 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
- Platinum efficiency 1100W AC Hot-plug power supply (1/2)
- Rack 2U, Dell Friction Rail Kit
- Warranty : 3 Year ProSupport and NBD On-site Service
SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
Processor
- Intel® Xeon® E5 2600 v3 processors
Operating System SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Chipset SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Intel C610 series chipset
Memory1
- 24 DIMM slots, DDR4 memory
Architecture: Up to 2133MHz MHz DDR4 DIMMs
Memory Type: RDIMM&LRDIMM
Memory Module Sockets: Twenty Four
Minimum RAM: 2 GB (one module)
Maximum RAM: Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
Embedded Hypervisor (Optional) SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Supported optional hypervisors:
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® vSphere® ESXiTM
Citrix® XenServer®
Storage SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- SAS, SATA, nearline SAS, SSD, PCIe SSD:
Up to 68.5TB with 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD
Up to 47.5TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD
Drive Bays SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Internal hard drive bay and hot-plug backplane:
Up to 18 x 1.8” SSD: SATA
Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA, up to 4 NVMe Express Flash PCIe
Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Slots SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card
RAID Controllers
- Internal:
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Network Controller
- 4 x 1Gb, 2 x 10Gb
Communications SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- 1100W AC, 86 mm 13G (Platinum+)
1100W DC, 86 mm 12G (Gold)
750W AC, 86 mm 12G (Platinum)
750W AC, 86 mm 12G (Diamond)
495W AC, 86 mm 12G (Platinum)
Availability SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Chassis SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Management SERVER DELL POWEREDGE R730xd 3.5" E5-2660 v3
- Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller.
