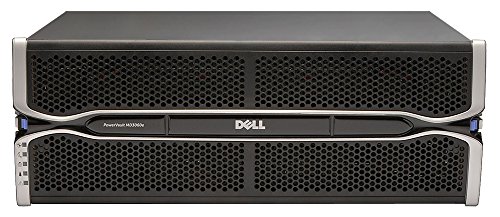

MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline SAS CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline SAS

MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline

Condition: Brand New
Hard Drive: 40TB (20 x 2TB) 7.2K 6Gb/s NL SAS 3.5" HDDs
Cables: 2 x 0.5M Mini-SAS to Mini-SAS Cables

THÔNG TIN NỔI BẬT

A 60-drive expansion enclosure specifically designed for the MD3 dense array series, the MD3060e dense enclosure is an eBOD (expansion bunch of disks), which operate in the same fashion as a JBOD (just a bunch of disks). There are two enclosure management modules (EMM) that allow for management of the expansion drives via the MD3 Dense Array controllers.

Up to 2 expansion enclosures can be daisy chained to an MD3 Series array
Options for mix and match of 3.5", 2.5", SED or SSD hard drives
Add 2 MD3060e enclosures (max) for up to 180 drives in just 12U, providing up to 1.8PB of raw capacity
Dual EMM controller option only, using the enclosure management modules

Software	OS Support Microsoft® Windows Server® 2012 R2, Red Hat® Enterprise Linux® 6.5, Ubuntu® 12.04 LTS, and Debian 7.4 Nexenta™
Storage	Drives 60 Controllers Dual Enclosure Management Modules (EMMs) HBA Requires a two port host bus adapter (HBA).
Scalability	Expansion capabilities Up to 4 dense enclosures behind a single server (240 HDDs)
Performance	Drive type 3.5" and 2.5" SAS, NL-SAS, SSD, SED Maximum HA host 2
Maximum Usable Capacity	3.5”drive capacity 7.2K RPM NL-SAS: 500GB, 1TB, 2TB, 3TB, 4TB1, 6TB, 8TB, 10TB SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers) 2.5”drive capacity 15K RPM SAS: 146GB1, 300GB1, 600GB1 10K RPM SAS: 146GB, 300GB1, 600GB1, 900GB1, 1.2TB1, 1.8TB 7.2K RPM NL-SAS: 500GB1, 1TB1, 2TB SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) 3.5” 10K and 15K HDDs are not supported on the dense model
Connectivity	6Gb SAS
Server Compatibility	Dell PowerEdge R630, R730 and the R730xd servers
Chassis	Form factor 4U rack enclosure Physical dimensions (height x width x depth)177.8mm (7.0”) x 482.6mm (19.0”) x 825.5mm (32.5”) Maximum weight 105.20 kg (232.0 lb)
Power	AC: 1755W
Management	Server controller dependent
Environmental	Heat dissipation (max) 5988 BTU/hr Voltage 220V AC, auto ranging Frequency range 50/60Hz Temperature Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour Relative humidity Operating: 10% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour Altitude Operating: -30.5m to 3000m (-100 ft to 9,840 ft) NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
