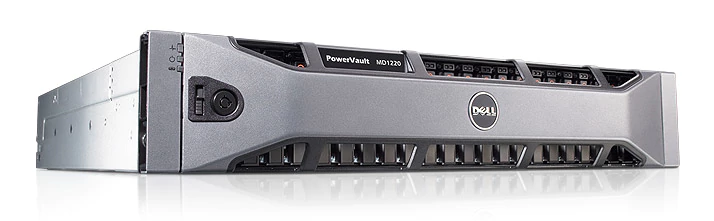

MÁY CHỦ SERVER DELL STORAGE POWERVAULT MD1220 DAS STORAGE


Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND

MÁY CHỦ SERVER DELL POWERVAULT MD1220 DAS STORAGE CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL STORAGE POWERVAULT MD1220 DAS STORAGE

Energy-efficient storage-expansion that provides the performance to satisfy demanding single- server applications.

  • Seamless server expansion for 6Gb/s SAS environments

  • Supports performance-intensive applications such as Web server, database and e-mail
  • 2.5-inch small-form-factor (SFF) array, energy-efficient storage expansion enclosure

MÁY CHỦ SERVER DELL POWERVAULT MD1220 DAS STORAGE

RAID PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.
Drives Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, 15K rpm and SAS Solid State Drives (SSDs).
Drive performances and capacities 2.5” 6Gbps SAS:
HDD 15K – 146GB, 300GB, 600GB
HDD 10K – 300GB, 600GB, 900GB, 1.2GB
HDD 10K 512e – 1.8TB
HDD 7.2K – 500GB, 1TB
SSD – 200GB, 800GB value SLC
SSD – 400GB mainstream SLC
SSD – 800GB RI MLC
SSD – 200GB, 400GB WI SLC
SSD – 2TB eMLC

2.5” 12Gbps SAS
HDD 15K – 600GB
HDD 7.2K NL-SAS 512e – 2TB
SSD – 200GB, 400GB, 800GB 1.6TB MU MLC
SSD – 200GB, 400GB, 800GB WI MLC
SSD – 800GB, 1.6TB RI MLC
Maximum Capacity (per enclosure) Up to 48TB when using 24 x 2TB NL-SAS 2.5" HDDs
Expansion Capabilities PERC H810 enables expansion to 8 enclosures, 4 per port
Connectivity Support for the following configurations:

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)

Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)

Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 11 and a separate connectivity to drives 12 through 23.
Management Enclosure Management Modules (EMM)

2 EMM modules provide redundant enclosure management capability
Back-Panel Connectors SAS connectors (per EMM)

1 SAS (SFF 8088) "IN" connector for connection to the host
1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure

Serial connector (per EMM)

1 6-pin UART mini-DIN connector (for factory use only)
LED Indicators Front panel

1 two-color LED indicator for system status
2 single-color LED indicators for power and split mode

Hard-drive carrier

1 single-color activity LED
1 two-color LED status indicator per drive

EMM

3 two-color LED status indicators: one for each of the EMM SAS ports and one for the EMM status
1 single-color Unit Identification LED for each EMM

Power supply/cooling fan module

3 LED status indicators for Power supply/cooling fan fault, AC power, and DC power
Power Two fully redundant power supplies; supports DC power

Wattage: AC - 600 W; DC - 700 W

Heat dissipation: AC - 2047 BTU/hr; DC - 2388 BTU/hr

Voltage: 100-240VAC; 48V DC

Frequency: 50/60Hz

Amperage: 8.6 A at 100 V, 4.3 A at 240 V

Available Hard Drive Power (per slot)
Supported drive power consumption (continuous):
up to 1.2 A at +5V
up to 0.5 A +12V
Chassis Height:

8.7cm (3.43 inches)

Width:

48.2cm (18.98 inches)

Depth:

54.1 (21.30 inches)

Weight:

23.31 kg (51 lb) (maximum configuration)
8.61 kg (19 lb) (empty)
Environmental Operating Conditions Temperature

Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
Supports Fresh Air cooling, up to 35 degrees Celsius

Relative humidity

Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)

Altitude

Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
Operating System Refer to the PERC RAID Card details for supported Operating Systems

PERC H810
