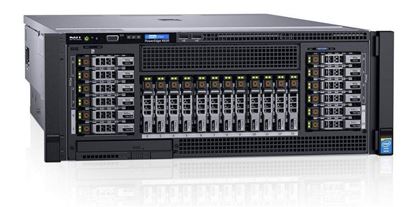

MÁY CHỦ SERVER DELL POWEREDGE R930 E7-4809 v3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R930 E7-4809 v3
MÁY CHỦ SERVER DELL POWEREDGE R930 E7-4809 v3
- 2x Intel® Xeon® E7-4809 v3 2.0GHz,20M Cache,6.4GT/s QPI,No Turbo,HT,8C/16T (115W) Max Mem 1867 MHz
- 16GB ( 2 x 8GB ) RDIMM, 2133MT/s, Dual Rank, x8 Data Width
- Hard Drive : None 2.5-inch
- RAID PERC H730 Adapter RAID Controller, 1Gb NV Cache ( RAID 0,1,5,6,10,50,60 )
- Broadcom 5720 Quad Port 1Gb Network Daughter Card
- iDRAC8 Express, integrated Dell Remote Access Controller, Express
- 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
- 1+1 Power Supply Hot-plug redundant 750W
- Rack 4U, Dell Friction Rail Kit
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
- Intel® Xeon® Processor E7-8800 Product Family
Intel® Xeon® Processor E7-4800 Product Family
Operating System
Chipset
- Intel® C602J
Memory1
- (96 DIMMs): 8GB/16GB/32GB DDR4 RDIMM, LRDIMM up to 1866MT/s
Storage
Drive Bays
Slots
- Up to 10 PCIe 3.0 slots
1 RAID slot
1 NDC slot
RAID Controllers
- Internal controllers: PERC H330, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Communications
- Embedded NICs:
Broadcom® 5720 quad-port 1Gb NDC
Broadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDC
Broadcom® 57800 2x10Gb BT + 2x1Gb BT NDC
Broadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDC
Intel® I350 quad-port 1GbE NDC
Intel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDC
Intel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC
Power
- Hot-plug redundant PSUs: 750W AC, 1100W AC
Availability
- Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
Graphics Card
- Matrox® G200 with 8MB memory
Chassis
Management
- iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
Rack Support
- ReadyRails® II, the sliding rail system for the R930, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks
Dimensions
- H: 6.8” (172.6mm)
W: 18.99” (482.4mm)
D: 31.59” (802.3mm) with PSU and bezel
D: 31.01” (787.7mm) with PSU and without bezel
